Tile Drainage Revolutionized

The Soil-Max Gold Digger is unlike any other agricultural drainage plows on the market, producing unparalleled economic and environmental benefits.

Unlike the Gold Digger, other tile plows on the market aren’t made from T1 steel. T1 steel is strong and thin and thus easier to pull than plows made from thicker types of steel.

Unlike traditional designs, the Gold Digger has a 3-point hitch that is in float, keeping the tractor completely independent of the plow. This unique design translates into reliable grade control even with less-than-perfect surface conditions.

Design Benefits

Increased Lifting Action & Zero Deflection

Increased Lifting Action

Lifting action on the soil greatly impacts the drag coefficient of any tile plow. While most tile plows can only lift the soil 2-3 feet, the Gold Digger Stealth ZD has an impressive 5 feet of lifting action. This unparalleled lift actually moves soil instead of compacting it. As a result, it eliminates mounting pressure and allows the plow to move effortlessly through the soil.

Grade Control with Zero Deflection

Deflection can be defined as “turning aside” or going “off course” but these words can be eliminated from your vocabulary with the Gold Digger Stealth ZD. Unlike competitor tiling attachment systems, our plow will never pitch up or down to cause this deflection.

Other tile plows use the parallel link method to control the grade, but the Gold Digger Stealth ZD pitches up and down, allowing the plow to directly follow the leading edge and making deflection impossible. Thanks to the strategic placement of the “pivot point,” the Gold Digger can lay drainage tile without the possibility of it veering off course or damaging the tile.

When the Gold Digger’s GPS receiver is placed near the tip of the plow, tile installation perfectly follows the tip or shear. Other plows perform oppositely, countering what the tip is doing when they make a grade change.

Zero Deflection Technology is patent pending and an integral new method of grade control. It is a new, but necessary tool to get the job done right.

Gold Digger Stealth ZD Tile Plows



  • Manufactured from T1 Steel, allowing twice the tensile strength with half the weight.

  • 2 ¼” of t1 is = to 6” of mild steel in strength.

  • Thinner profile shank = easier pulling through the soil.

  • Lifting action lifting soil through the entire soil profile to make less drag on the plow.

  • Installation of 3” to 10” tile by changing quick change poly sided boots and shear.

  • Trapezoidal shaped shear and contoured boots to match tile size and maintain tile trench from beginning to end for accurate pipe placement.

  • Zero deflection produces better grade control with the tile exit point directly below the hinge point of the pitch plow.

  • Proprietary proportional valve to make crucial incremental adjustments to keep your plow on grade.

  • Available options: PWM controlled tile feeder, walking tandems.

CAT II/III Narrow 3 pt

  • Manufactured from T1 Steel, allowing twice the tensile strength with half the weight.

  • Needs a minimum of a 8,000 lb tractor

  • Thinner profile shank = easier pulling through the soil.

  • 4' maximum working depth

  • Installation of 2” to 4” tile by changing quick change poly sided boots and shear.

  • Zero deflection produces better grade control with the tile exit point directly below the hinge point of the pitch plow.

  • Proprietary proportional valve to make crucial incremental adjustments to keep your plow on grade.

  • Poly sides that shed dirt and makes for an easier pull

Pull Type Plow

  • All of the above as well as…

  • 6.5’ working depth.

  • Easy single pin connection to hitch.

  • Single point hydraulic hook-up to tractor.

  • Proprietary down pressure manifold puts only necessary pressure on the wing wheels, ensuring that pipe being installed in the soil profile is being done correctly and is unaffected by surface conditions.

CAT III/IV 3pt Plow

  • Same as stealth ZD.

  • 5.5’ working depth.

  • Easy connecting 3pt in Cat III or Cat IV.

  • Can be used on tractors as small as 20,000 lbs.

The HD-Cart

Simple tile spool transport and feeding

  • Soil-Max makes managing your tile easy with hydraulic control of the table.  Optional wireless remote makes cumbersome wires, or rope brakes a thing of the past.  Standard features of high flotation tires, large table, large stinger, heavy built frame, and onboard battery charger makes the chore of stringing tile a breeze.

  • The Soil-Max HD Cart is built to handle the rigors of rugged terrain. It has a sturdy 5,200 lb. axle on 6-lug wheels with a steel tube construction frame. A 30-foot magnetic controller and 12V DC hydraulic unit makes operating the unit simple and straightforward.  Standard onboard charging system.

  • The 11' 6" tabletop diameter with disk brake turntable makes feeding tile similarly easy and the 12-inch diameter stringer can manage the flow of any size tile.  Add  the optional wireless controller, and dont mess with wires to the cab again.

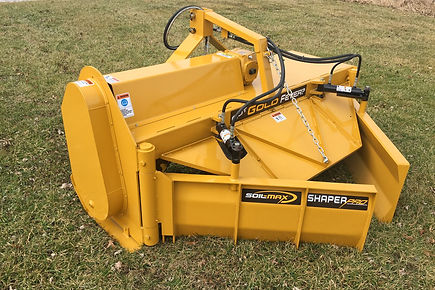

Shaper Pro

Hassle Free!

  • Manage your tile installation trench with ease, with our new innovative design.

  • Add revenue with a "post installation" service that only you provide.

Get The Maximum Yield With Intellislope

Easy and effective field drainage

Are you getting the maximum yield from your fields? Our farm drainage plows pay for themselves with compounding benefits through the years. They improve soil tilth for better root development, lengthen planting windows, and provide better nutrient access for crops by removing excess moisture from the soil profile. The Intellislope functionality is available through the Ag Leader® display and provides tile plow control for easy and effective installation of a field drainage system.
